HomeChassis, Clamps, & BracketsRear End Brackets JOES Double Shear Trailing Arm Bracket
JOES Racing Products

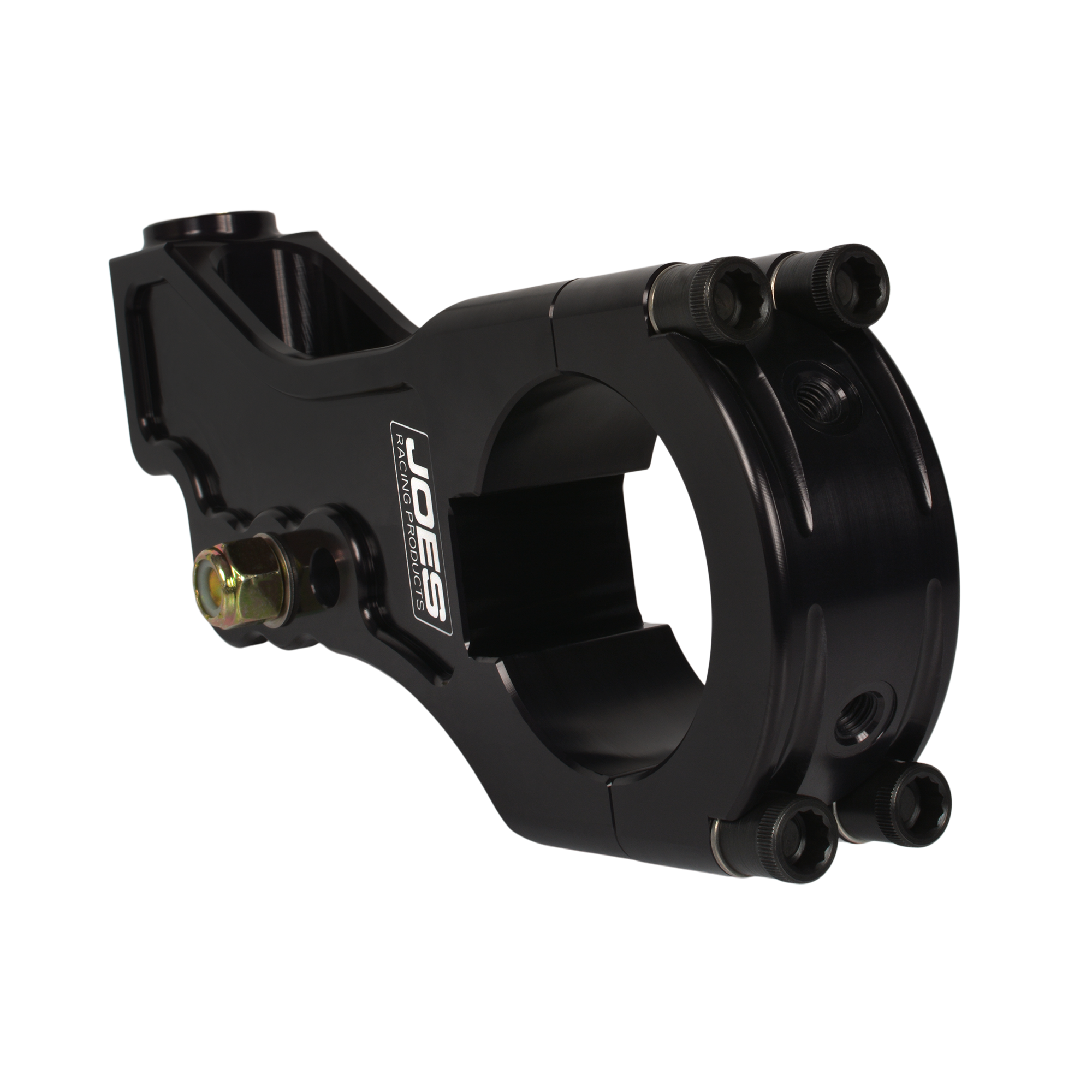

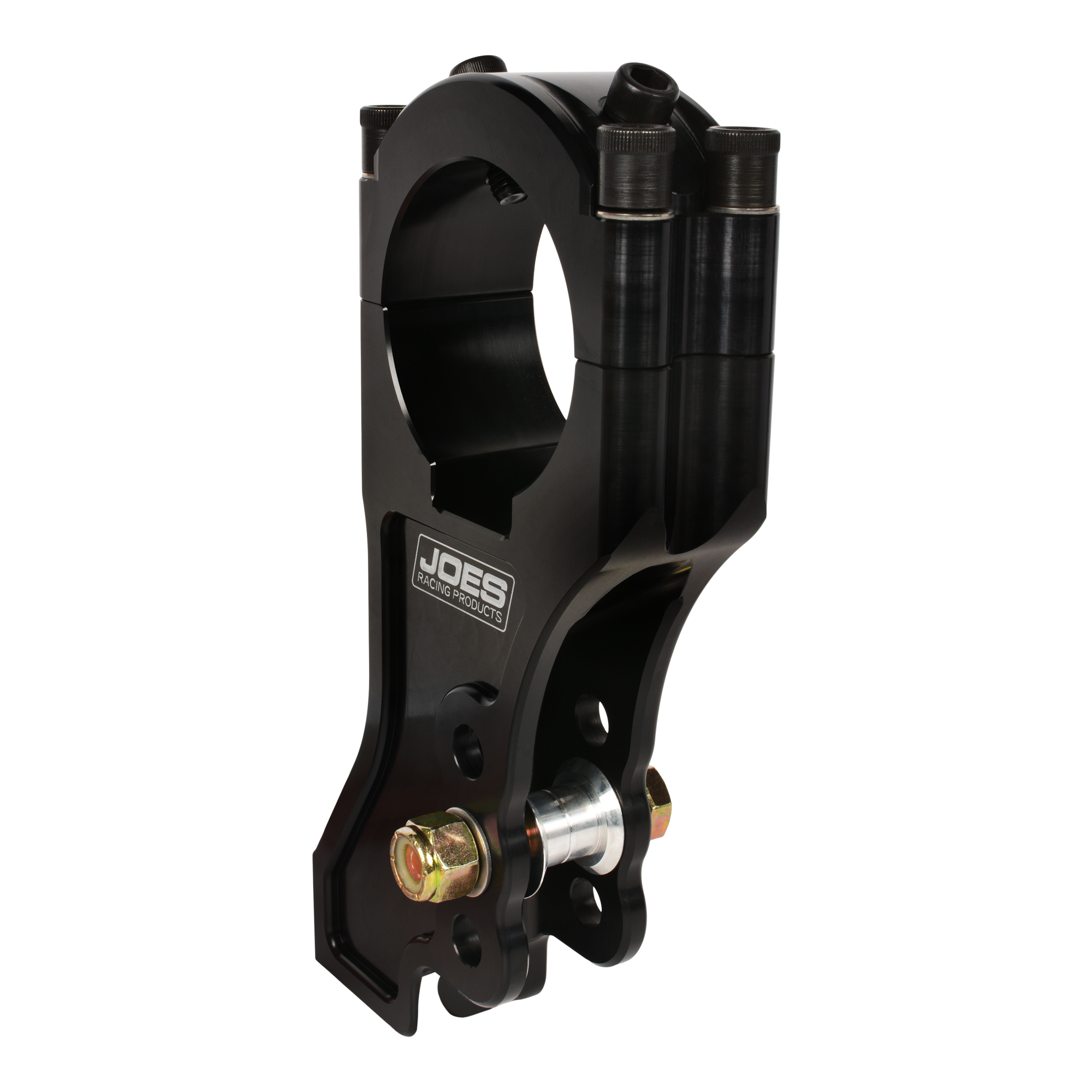

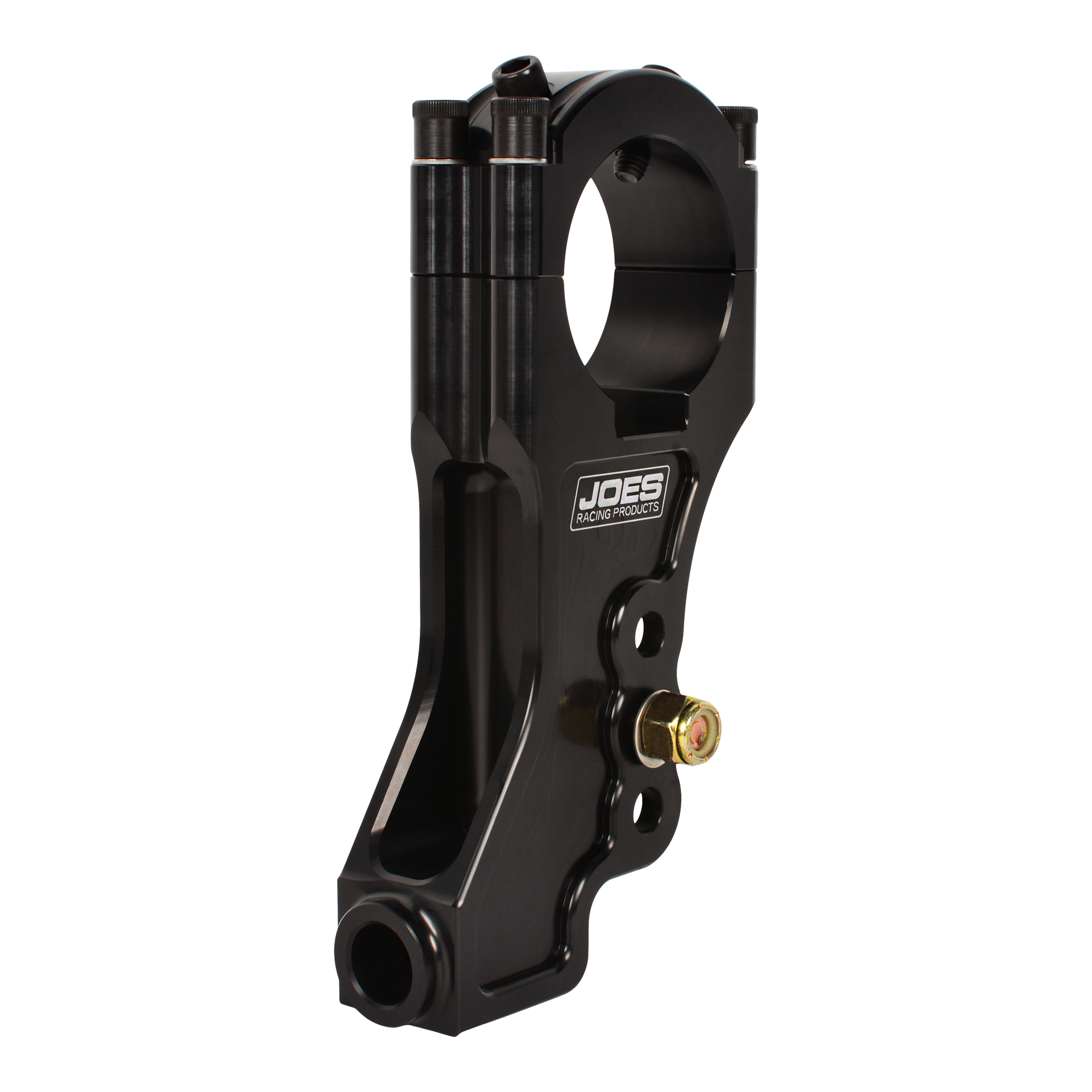

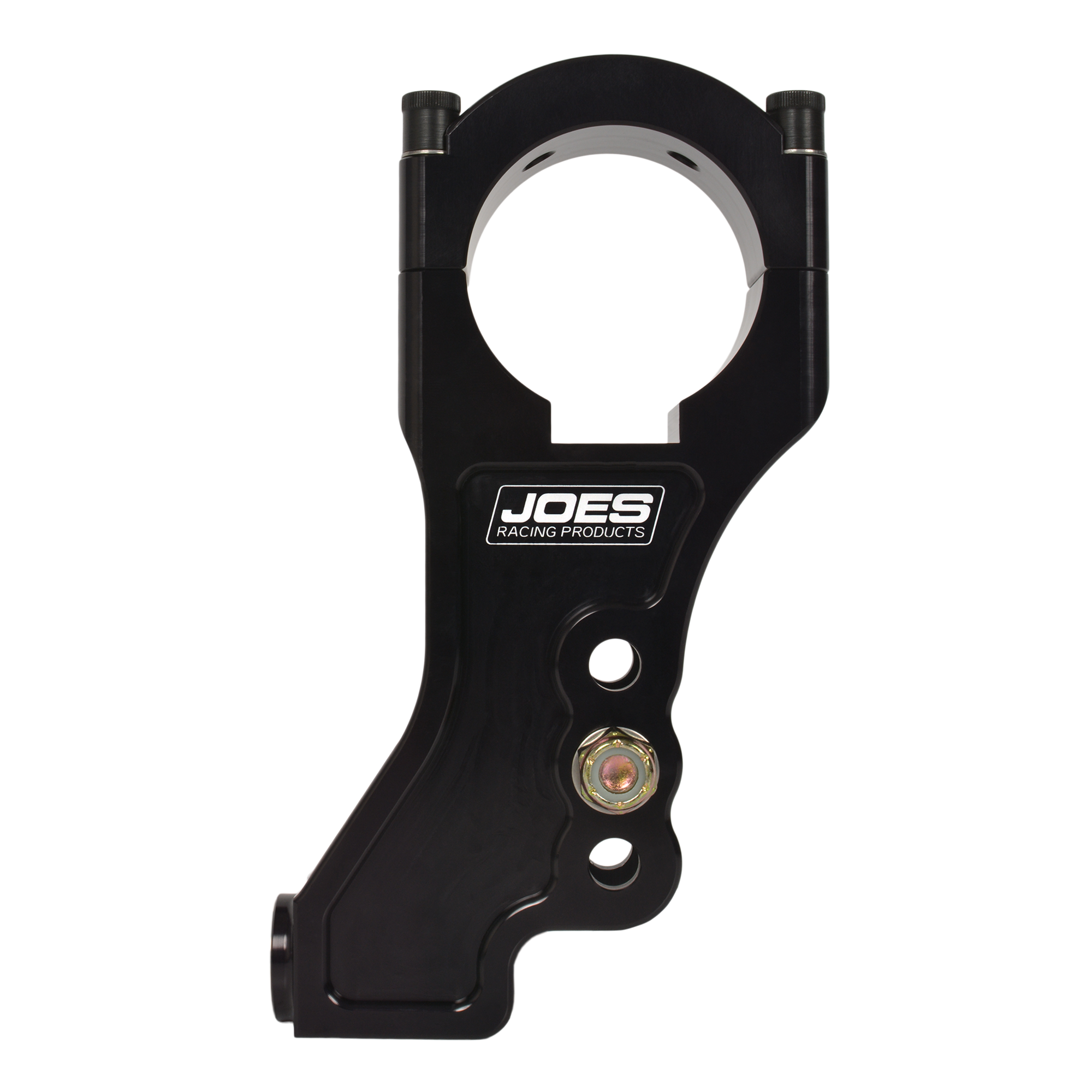

JOES Double Shear Trailing Arm Bracket

$274.95

Out of stock

Want to be notified when this product is back in stock?

SKU: 11403 Categories: Chassis, Clamps, & Brackets, Rear End Brackets
Share
Facebook Twitter Email linkedin
  • Description
  • Reviews (0)
  • Item Inquiry
  • Shipping & Delivery
Description

KEEP YOUR REAR IN CHECK with JOES new Double Shear Trailing Arm Bracket

Our new billet aluminum, four bolt, double shear trailing arm bracket increases the clamping pressure exerted on the axle tube while providing two different methods to eliminate rotation. This rigid design will easily tackle the highest suspension loads used in today’s racecars and it has been designed for use with up to 5″ springs. Keys are NOT included, but are available here.


  • Utilizes four ⅜”-24 studs and socket nuts for increased clamping pressure
  • Axle centerline to trailing arm bracket hole distances are 4”, 5”, and 6”
  • Machined for keyway to eliminate rotation (Sold separately)
  • Double sheer mount creates more rigid mount
  • Designed to use up to 5” diameter springs
  • Axle centerline to shock mount is 7⅛”
  • CNC Machined from billet aluminum
  • Made in the USA



P/N 11403 – Double Shear Trailing Arm Bracket

P/N 11404 – Aluminum Keyway (must weld to axle tube)

P/N 11405 – Steel Keyway (must weld to axle tube)
