Introducing MyChron6
MyChron6 is AiM’s latest GPS lap timer for micro sprints, jr sprints and karting, combining 30 years of experience with cutting-edge technology. With 25 Hz GPS and dual temperature inputs, MyChron6 offers precise lap timing and advanced data analysis for both amateur and professional racers.
Accurate Lap Times and Data Analysis
Using the integrated 25 Hz GPS chipset, MyChron6 delivers extremely accurate lap times and position data. It allows you to analyze racing lines, cornering speeds, and braking points through the free Race Studio 3 software. The device is also ready for future mobile app integration with iPhone and Android.
Data transfer is seamless via built-in Wi-Fi or the USB-C connection, making it quick and easy to review and manage your data after every session.

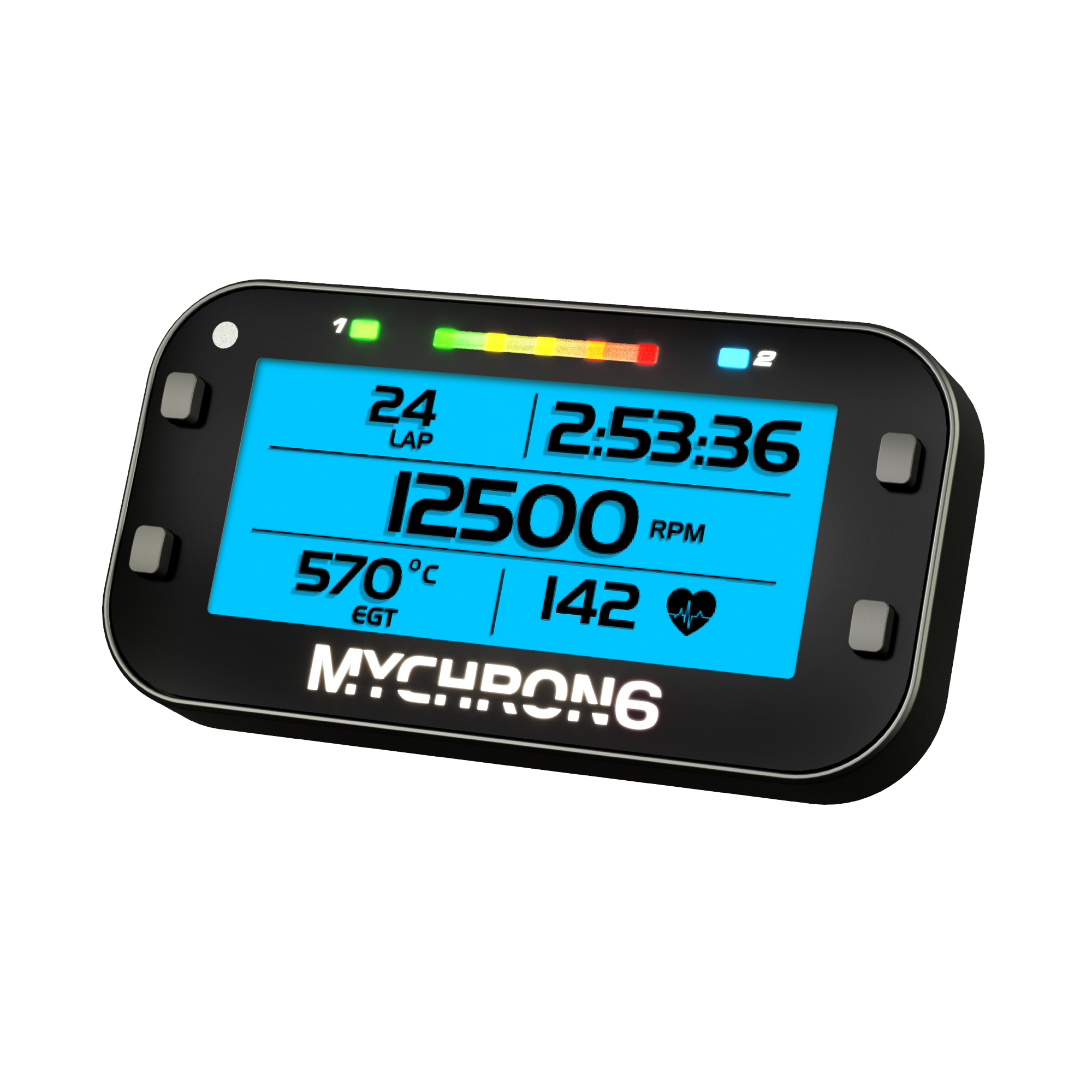

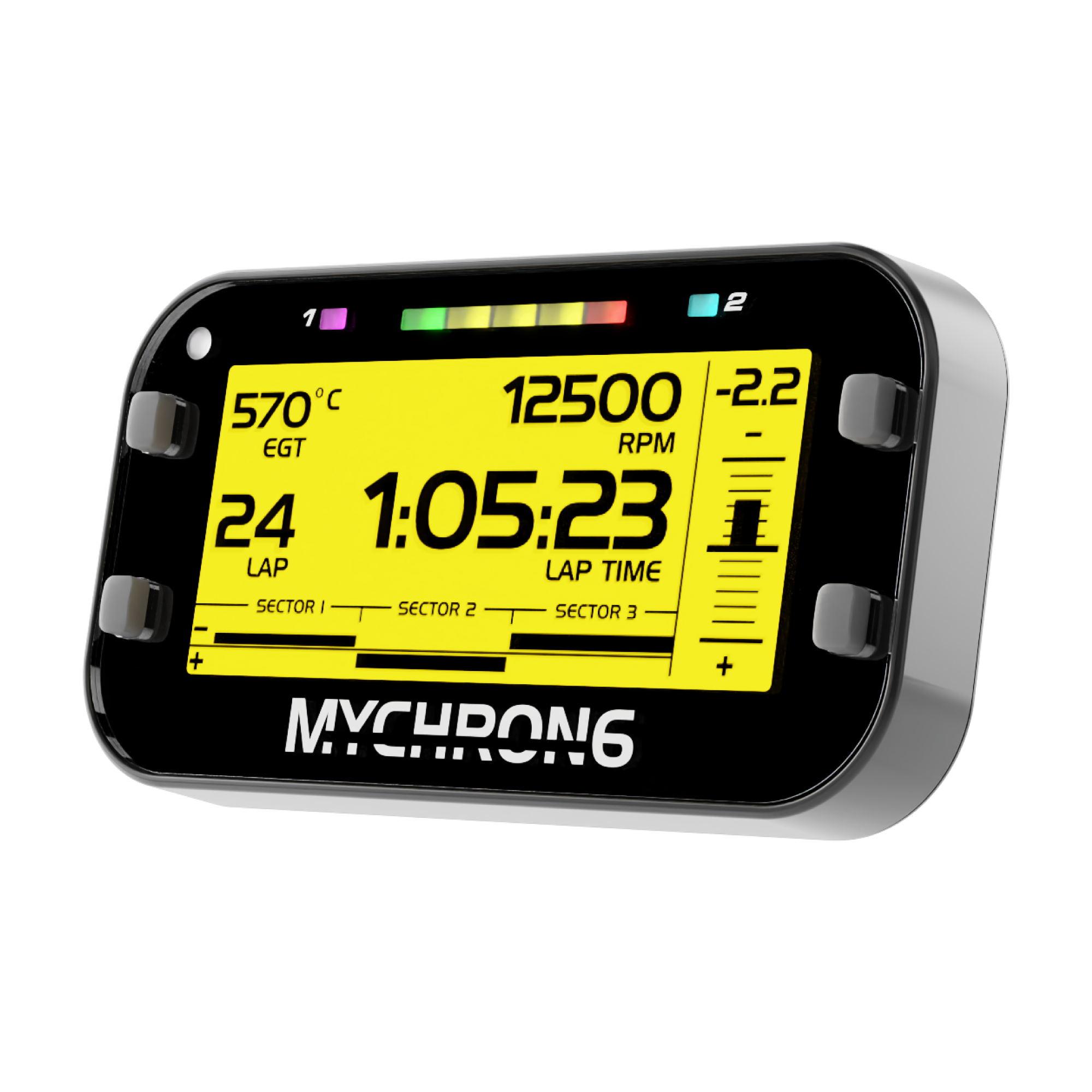

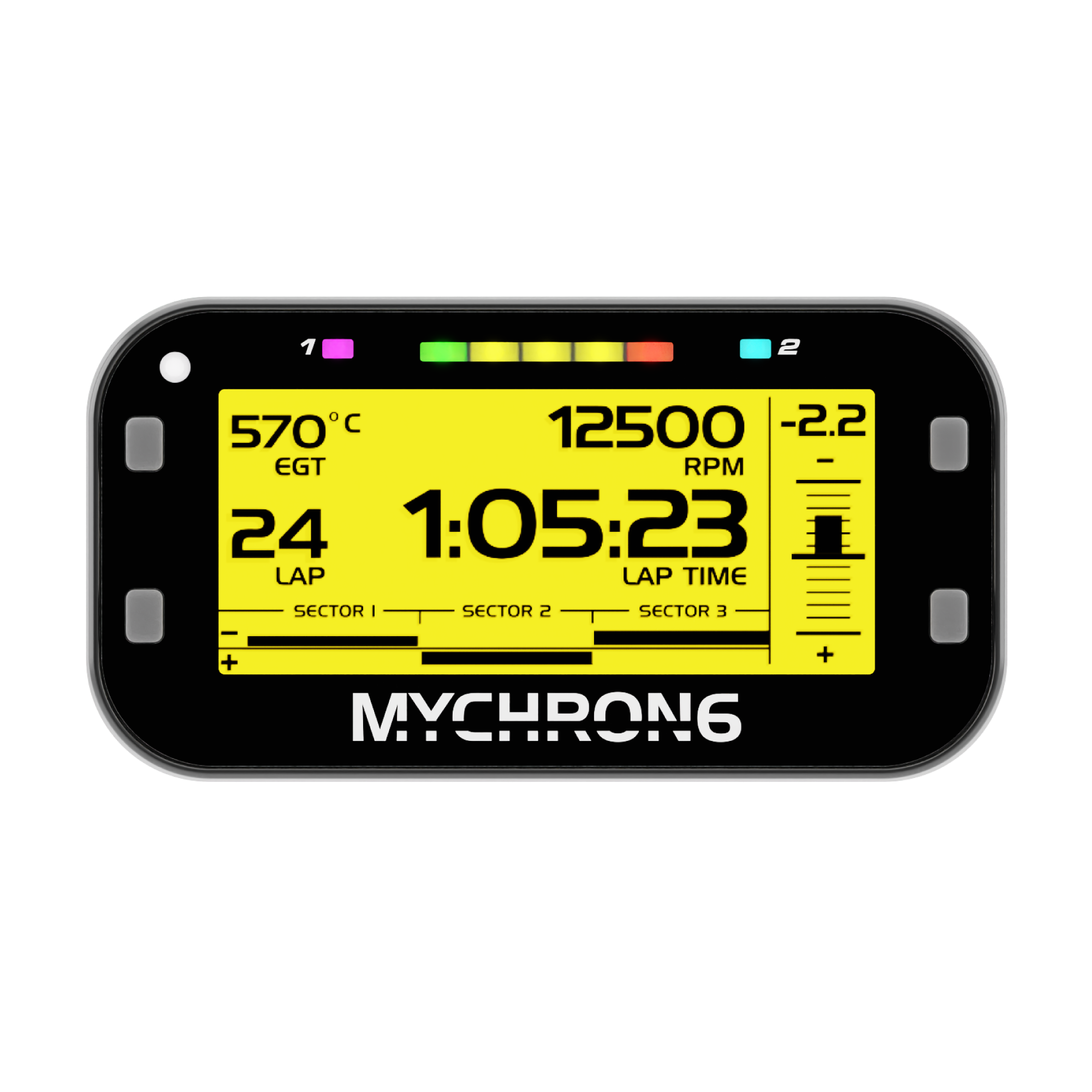

Advanced Display and LED System
The wide pixel display ensures excellent readability, even in changing light conditions, with adjustable RGB backlight options. Two RGB alarm LEDs provide real-time engine monitoring, while the five RGB shift lights can be customized to show predictive lap times or act as a traditional shift indicator. Everything is configurable to suit your needs.
Analyze Your Micro/JR/Kart Performance
The integrated 6-axis inertial platform provides detailed insights into your micro sprint, jr sprint or kart’s dynamics, including steering position analysis for understanding oversteer and understeer. This feature helps fine-tune your setup for optimal performance on the track.
MyChron6 Features
- Clear and easy-to-read graphical display with 320×136 resolution
- 8 configurable RGB backlight colors
- 5 RGB shift lights and 2 RGB alarm LEDs
- 1 temperature input
- Compatible with external modules like MyChron Expansion, IR Temperature Controller, SmartyCam 3 Series, and Lambda (LCU-One and LCU1S)
- Lap timing via GPS, magnet sensor, or infrared
- RPM input
- 4 GB memory – enough for over 3000 hours of data
- Wi-Fi and Bluetooth connectivity for heart rate monitors
- Rechargeable lithium battery with up to 20 hours of runtime
- Dimensions: 150.0 x 79.0 x 36.6 mm
- Weight: 370 g including the battery
- Water resistance: IP67
- External power supply: 9-15 V
- Two CAN connections, AiM expansions & ECU
- USB connection for data transfer, memory, and battery charging
- Integrated 6-axis inertial platform with 50 Hz frequency, enabling steering position analysis and over-/understeer detection
- Digital output: Programmable high/low activation
In the Box
- MyChron6 lap timer
- RPM sensor
- Cylinder Head Temperature sensor & patch cable, 14mm
- USB-C charge cable
