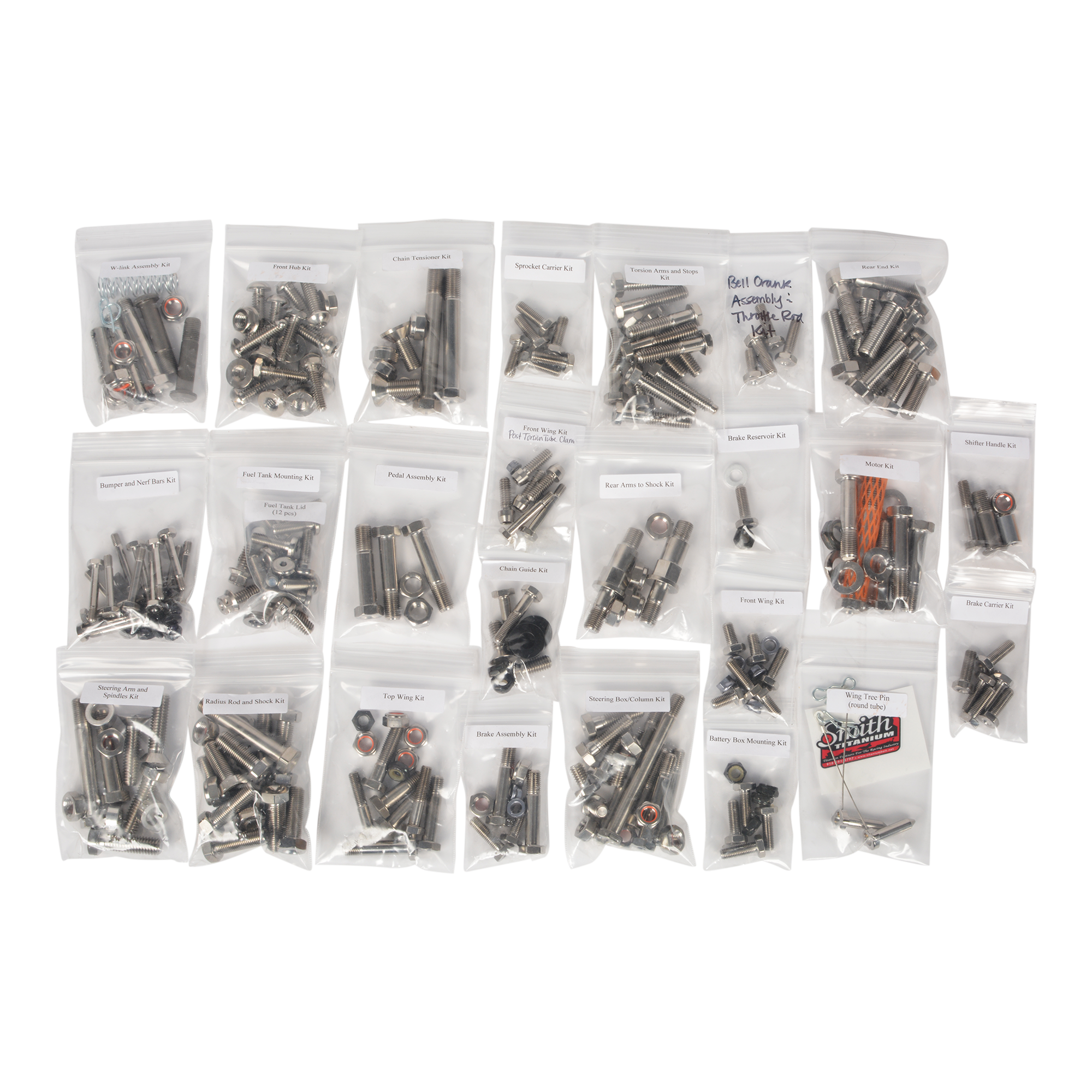

Complete Bolt Kit for common Micro Sprint Chassis.
Kit includes:
Radius Rod and Shocks Kit (STPM-RR-SHK-KIT)
Quantity |
Size (Thread x Length) |
Description |
6 | ⅜”-24 x 1⅛” Hex Head |
|
1 | ⅜”-24 x 2⅝” Hex Head | Pan Hard to Chassis |
1 | ⅜”-24 x 2⅛” Hex Head | Pan Hard to Chassis |
5 | ⅜”-24 Titanium Nuts with Nylock (.330 height) | Front Radius Rod to Axle Flag |
4 | ⅜”-24 x 1″ Hex Head (all threads) | Shock Mounting to Chassis |

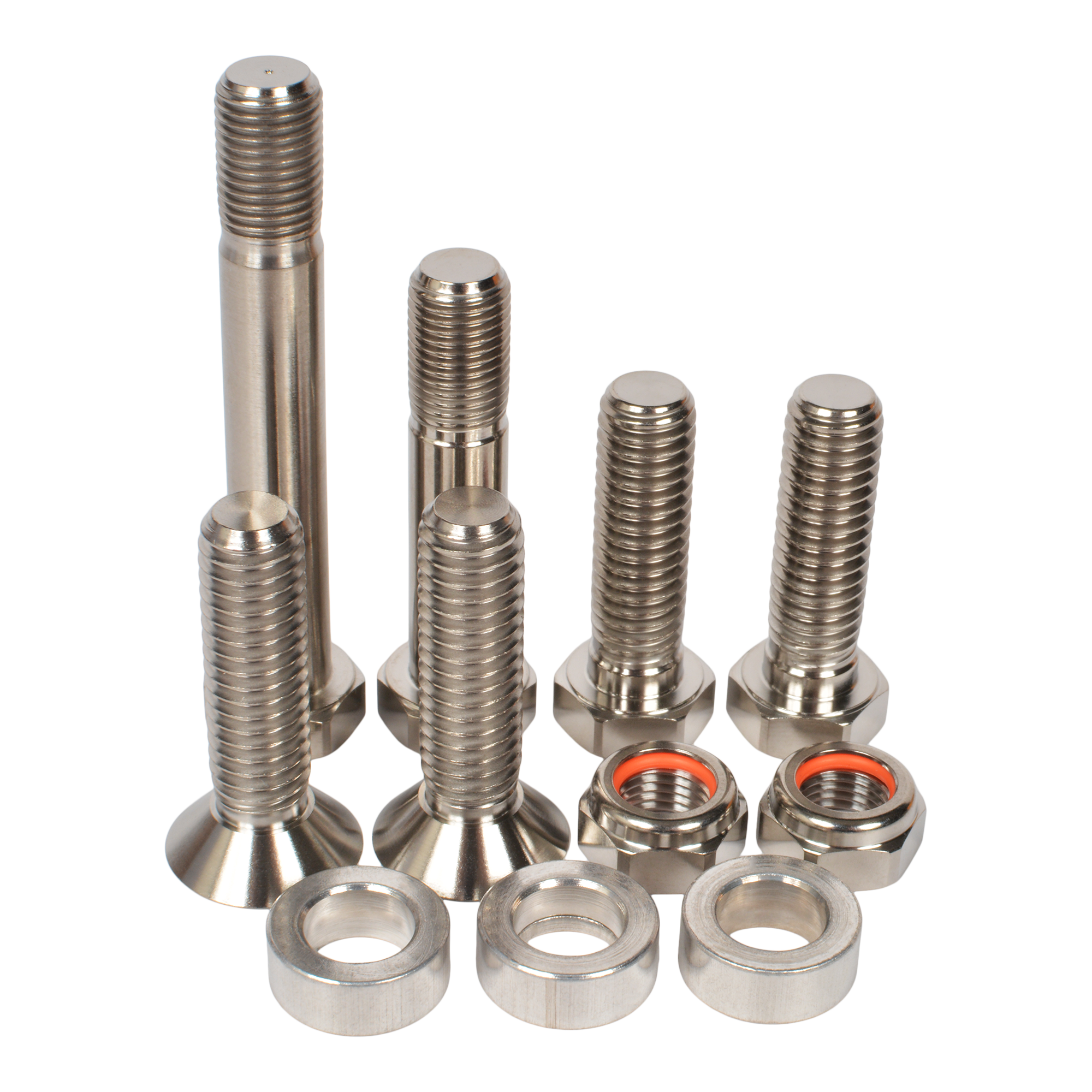

Steering Arm and Spindles Kit (STPM-SA-SP-KIT)
Quantity |
Size (Thread x Length) |
Description |
2 | ⅜”-16 x 1¼” Hex Head | Steering Arm to Spindle |
2 | ⅜”-16 x 1½” Countersunk | Steering Arm to Spindle |
1 | ⅜”-24 x 2½” Hex Head | Left Front Steering Arm – Drag Link – Tie Rod |
1 | ⅜”-24 x 1¾” Hex Head | Right Front Steering Arm – Tie Rod |
2 | ⅜”-24 Titanium Nut with Nylock (.330 height) | Steering Arm to Spindle |
3 | ⅜” x ¼” Aluminum Spacer | Steering Arm to Heim End |
Steering Box/Column Kit (STPM-SB-C-KIT)
Quantity |
Size (Thread x Length) |
Description |
1 | ⅜”-24 x 1½” Hex Head | Drag Link to Steering Box |
1 | ⅜”-24 Titanium Nut with Nylock (.330 height) | Drag Link to Steering Box |
2 | ⁵/₁₆“-24 x 3¼” Hex Head std | Steering Box to Chassis |
4 | ⁵/₁₆“-24 Titanium Nuts with Nylock (.330 height) |
|
2 | ⁵/₁₆“-24 x 1⅞” Hex Head | Drop Bucket to Chassis |
3 | M-8 x 1¼ x 25mm Hex Head | Drop Bucket to Bracket |
3 | ⁵/₁₆“-18 x ½” Hex Head | Steering Wheel to Hub |

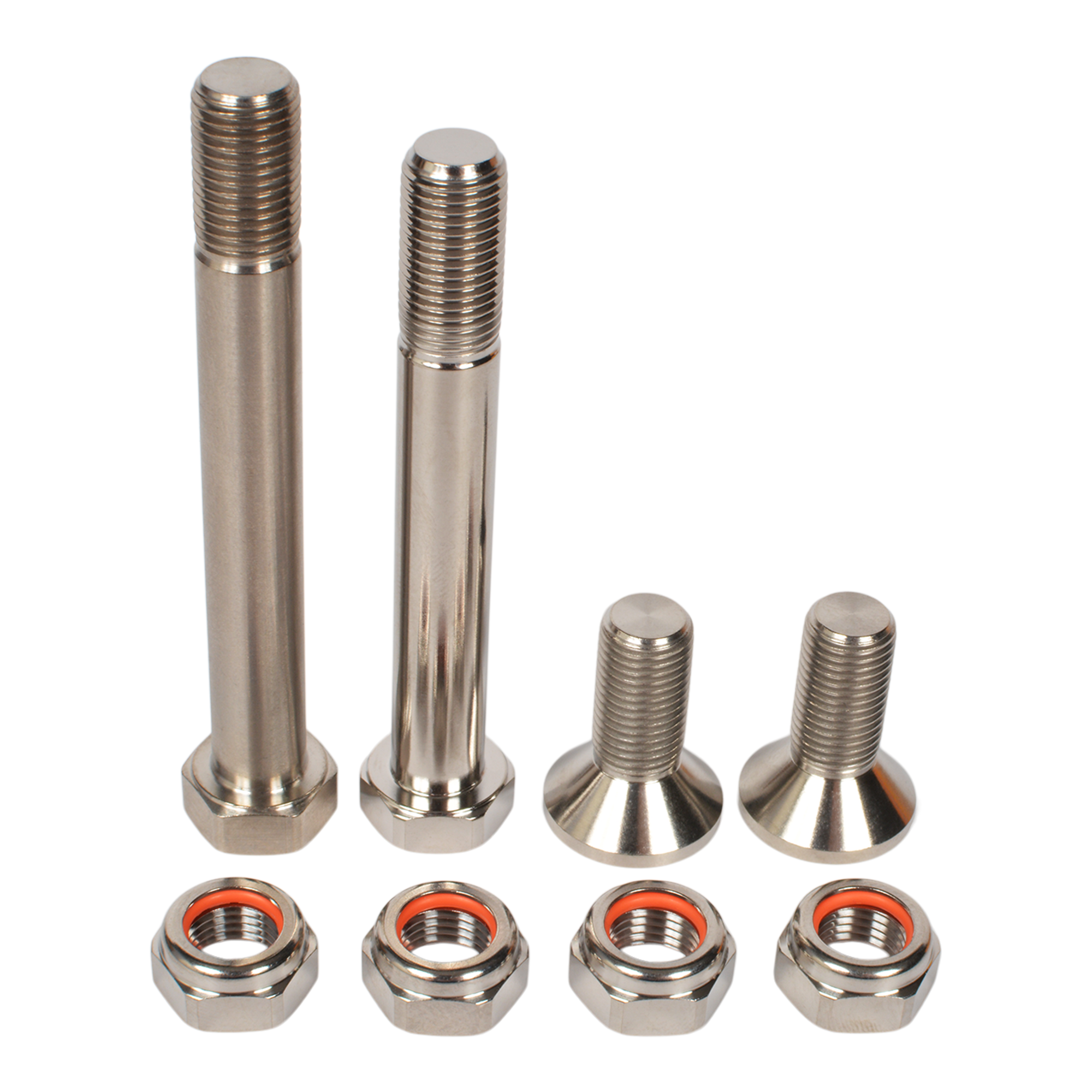

Rear Arm to Shocks Kit (STPM-RA-SH-KIT)
Quantity | Size (Thread x Length) | Description |
2 | ⅜”-24 x 2.410″ Stud | Rear Torsion Arm to Shock Right Rear |
4 | ⅜”-24 Titanium Nut with Nylock (.330 height) | Rear Torsion Arm to Shock |
Torsion Arms and Stops Kit (STPM-TA-S-KIT)
Quantity | Size (Thread x Length) | Description |
8 | ⁵/₁₆“-18 x 1½” Hex Head with ¾” of thread | Threaded Torsion Stop / Rear Arm Pinch Bolts |
4 | ⁵/₁₆“-18 x 1½” Hex Head with Radiused Tip | Torsion Stop Adjuster |
Motor Kit (STPM-M-KIT)
Quantity | Size (Thread x Length) | Description |
4 | ⅜”-24 x 1¾” Hex Head | Motor Plate to Chassis |
4 | ⅜” Titanium Washers | Motor Plate to Chassis |
1 | ⁷/₁₆“-20 x 3” Hex Head | Motor Plate to Chassis |
1 | ⁷/₁₆“-20 Black Nylock Nut | Motor Plate to Chassis |
Rear End Kit (STPM-RE-KIT)
Quantity | Size (Thread x Length) | Description |
4 | ⁷/₁₆“-20 x 1¼” Hex Head | Rear Radius Rod to Chassis/Radius Rod to Birdcage |
1 | ⁷/₁₆“-20 x 1½” Hex Head | Brake Rod to Brake Carrier |
1 | ⁷/₁₆“-20 x 1½” | Brake Rod to Chassis |
2 | ⅜”-24 x 1½” SHCS | Brake Carrier to Brake Caliper |
2 | ⅜”-24 x 1″ Hex Head (all threads) | Shock to Chassis |
Sprocket Carrier Kit (STPM-SC-KIT)
Quantity | Size (Thread x Length) | Description |
6 | ¼”-28 x ¾” Hex Head | Sprocket to Sprocket Carrier |
Brake Carrier Kit (STPM-BC-KIT)
Quantity | Size (Thread x Length) | Description |
6 | ¼”-28 x ¾” Hex Head | Brake Rotor to Rotor Carrier |
W-Link Assembly Kit (STPM-WL-KIT-J)
Quantity | Size (Thread x Length) | Description |
1 | ⅜” x .975 grip Clevis Pin | W-Link to Right Rear Birdcage Rod End |
2 | ⅜”-24 x 2″ Hex Head | W-Link to Chassis |
2 | ⅜”-24 x 1.688″ Hi-Loks | W-Link to Arms |
4 | ⅜”-24 Titanium Nuts with Nylock (.330 height) | W-Link to Chassis |
2 | Springs | Boing Boing |
Bell Crank Assembly and Throttle Rod Kit (STPM-BC-TR-KIT)
Quantity | Size (Thread x Length) | Description |
3 | ¼”-28 x ⅞” Hex Head |
|
1 | ¼”-28 x ⅝” | |
3 | ¼”-28 Jet Nut | Throttle Pedal/to Throttle Pedal Rod |
Pedal Assembly Kit (STPM-PED-AS-KIT)
Quantity | Size (Thread x Length) | Description |
3 | ⅜”-24 x 1¾” Hex Head | Pedals to Chassis |
2 | ⅜”-24 Titanium Jam Nuts | Pedals to Chassis |
Brake Assembly Kit (STPM-BA-KIT)
Quantity | Size (Thread x Length) | Description |
2 | ¼”-28 x ⅞” Countersunk | Brake Pedal/Master Cylinder |
2 | ¼”-28 Jet Nuts | Brake Pedal/Master Cylinder |
2 | ⁵/₁₆“-24 x 1.550” Hex Head | Master Cylinder to Chassis |
2 | ⁵/₁₆“-24 Titanium Nuts with Nylock (.330 height) | Master Cylinder to Chassis |
Brake Reservoir Kit (STPM-BR-KIT)
Quantity | Size (Thread x Length) | Description |
1 | ¼”-28 x ¾” Hex Head | Brake Fluid Reservoir to Chassis |
1 | ¼”-28 Jet Nut | Brake Fluid Reservoir to Chassis |
1 | ¼” Aluminum Washer | Brake Fluid Reservoir to Chassis |
Chain Guide Kit (STPM-CG-KIT)
Quantity | Size (Thread x Length) | Description |
2 | ⁵/₁₆“-18 x ⅞” Countersunk | Chain Guide Bracket to Left Rear Birdcage |
2 | ¼”-28 x 1¼” Hex Head | Chain Guide Block to Chain Guide Bracket |
2 | ¼”-28 Nylock Hex Nut | Chain Guide Block to Chain Guide Bracket |
2 | ⁵/₁₆ in² Black Anodized Spacers | Chain Guide Block to Chain Guide Bracket |
Chain Tensioner Kit (STPM-CT-KIT)
Quantity | Size (Thread x Length) | Description |
2 | ⅜”-24 x 1″ Countersunk | Chain Tensioner Link to Motor Plate |
1 | ⅜”-24 x 2¾” Hex Head | Top Tensioner Roller Wheel |
1 | ⅜”-24 x 3″ Hex Head | Bottom Tensioner Roller Wheel |
4 | ⅜”-24 Titanium Nuts with Nylock (.330 height) | Tension Wheels |

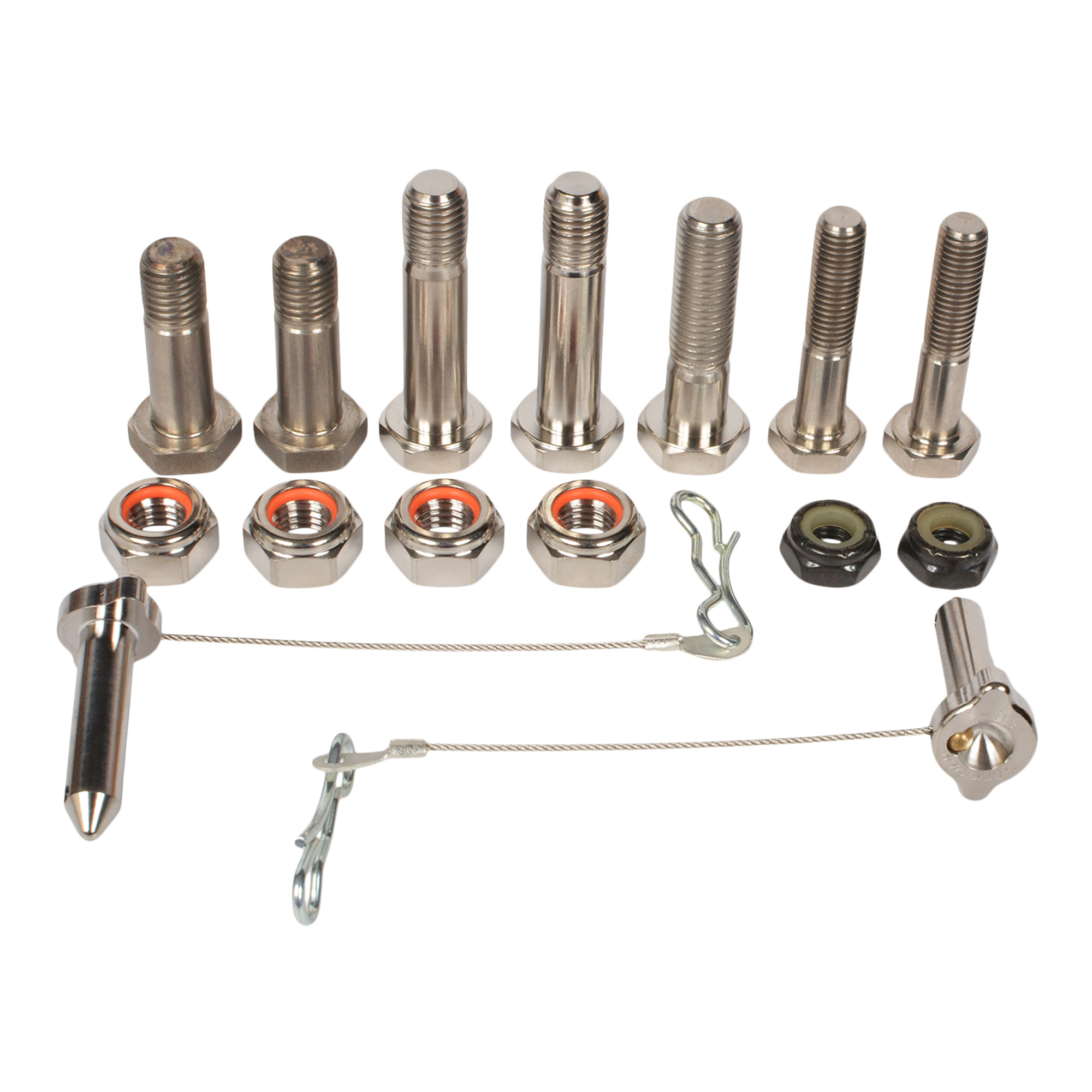

Top Wing Kit (STPM-TW-KIT-J)
Quantity | Size (Thread x Length) | Description |
2 | ⁵/₁₆“-24 x 1⅜” Hex Head | T-Post to Chassis |
1 | ¼”-28 x 1¼” Hex Head .887 grip | Slider to Chassis |
1 | ¼”-28 x 1¼” Hex Head .900 grip | Slider to Wing Tree |
2 | ⁵/₁₆“-24 x 1” Hex Head |
|
1 | ⁵/₁₆“-24 x 1¼” Hex Head | RS Wing to Chassis |
1 | Wing Pins Round Tube with Tether | |
2 | ¼”-28 Black Nylock Nut | |
4 | ⁵/₁₆“-24 Titanium Nylock Nut |
Front Wing Kit (STPM-FW-KIT)
Quantity | Size (Thread x Length) | Description |
4 | ¼”-28 x ½” Hex Head |
|
2 | ¼”-28 x ¾” Hex Head | Front Wing Post to Wing |
6 | ¼”-28 Steel Jet Nuts |
Front Wing Post Torsion Tube Clamp (Pair) Kit (STPM-FW-TTC-KIT-J)
Quantity | Size (Thread x Length) | Description |
2 | ¹⁰/₃₂” x 1¼” Hex Head .940 grip | Wing Post to Clamp |
2 | ¹⁰/₃₂” Jet Nut | Wing Post to Clamp |
4 | ¼”-20 x ¾” SHCS | Tube Clamp |
Battery Box Mounting Kit (STPM-BBM-KIT)
Quantity | Size (Thread x Length) | Description |
4 | ¼”-28 x ¾” Hex Head | Battery Box to Floor Pan |
4 | ¼”-28 Black Nut with Nylock | Battery Box to Floor Pan |
Bumpers and Nerf Bars Kit (STPM-BNB-KIT)
Quantity | Size (Thread x Length) | Description |
14 | ¹⁰/₃₂” x 1¼” Hex Head | Bumper Bolts |
14 | ¹⁰/₃₂” Black Nut with Nylock | Bumper Nuts |
Fuel Tank Mounting Kit (STPM-FTM-KIT-J)
Quantity | Size (Thread x Length) | Description |
4 | ⁵/₁₆“-18 x ⅝” Hex Head | Tank to Chassis |
4 | ⁵/₁₆” Titanium Washers | Tank to Chassis |
12 | ¼”-28 x ⅞” Button Head | Fuel Tank Plate Kit |
Shifter Handle Kit (STPM-SH-KIT)
Quantity | Size (Thread x Length) | Description |
1 | ⅜”-24 x 1.29″ Hi-Loks .880 grip + nut | Shift Handle to Chassis |
1 | ⅜”-24 Titanium Nut with nylock (.330 height) | Shift Handle to Chassis |
1 | ¼”-28 x 1½” Hex Head | Shifter Cable End to Shift Handle |
1 | ¼” x ⅝” Aluminum Spacer | Shifter Cable End to Shift Handle |

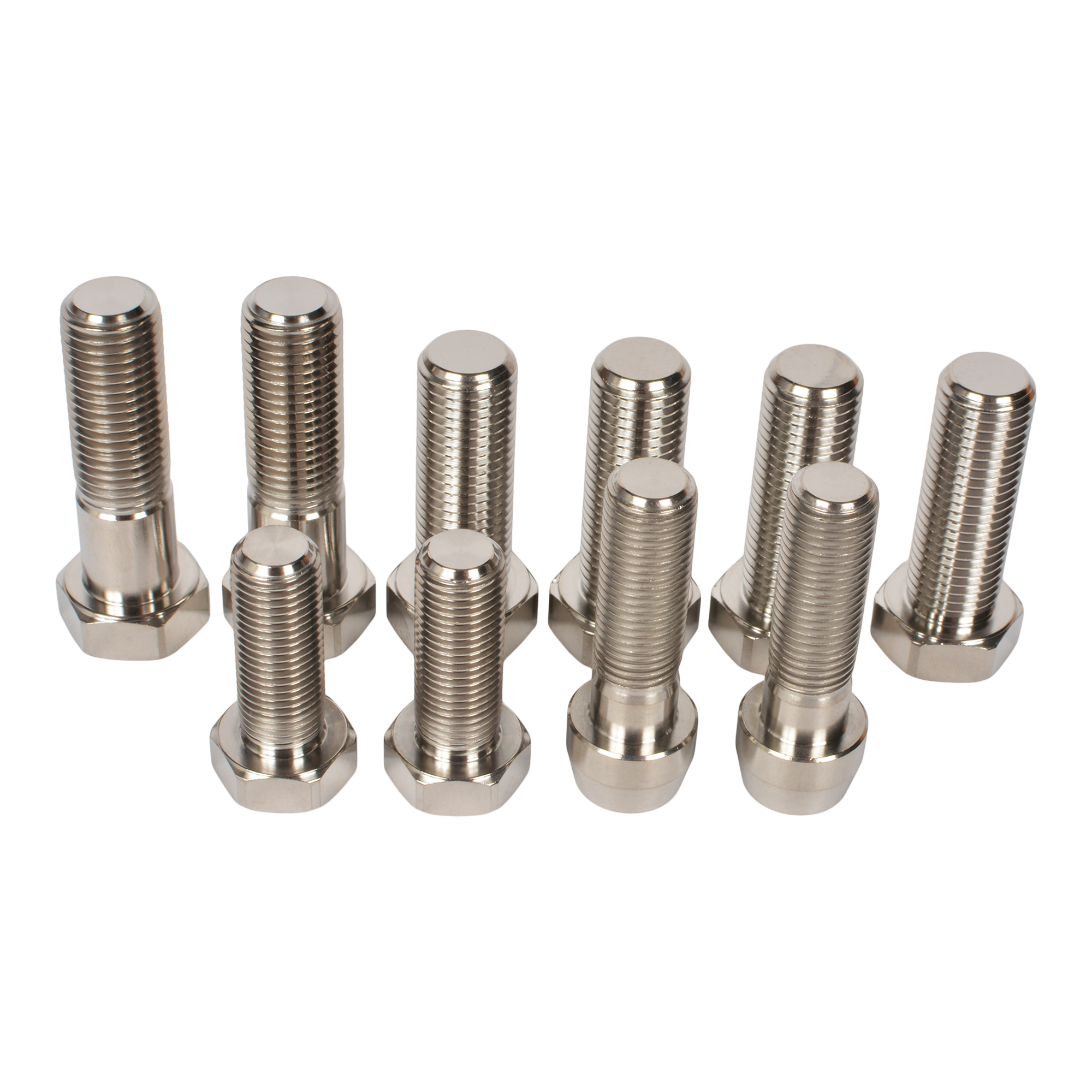

Front Hub Kit (STPM-FH-KIT-J)
Quantity | Size (Thread x Length) | Description |
8 | ⁵/₁₆“-18 x 1” Ball Nose Button Head | |
8 | ⁵/₁₆“-18 Titanium Flange Nut | |
3 | ¼”-20 x 1″ Hex Head | Front Rotor to Hub |
