HomeSteeringSteering Columns JOES Micro Sprint Manual Steering Assembly
JOES Racing Products

JOES Micro Sprint Manual Steering Assembly

$59.95 – $349.95

Clear
SKU: N/A Categories: Steering, Steering Columns
Share
Facebook Twitter Email linkedin
  • Description
  • Reviews (0)
  • Item Inquiry
  • Shipping & Delivery
Description

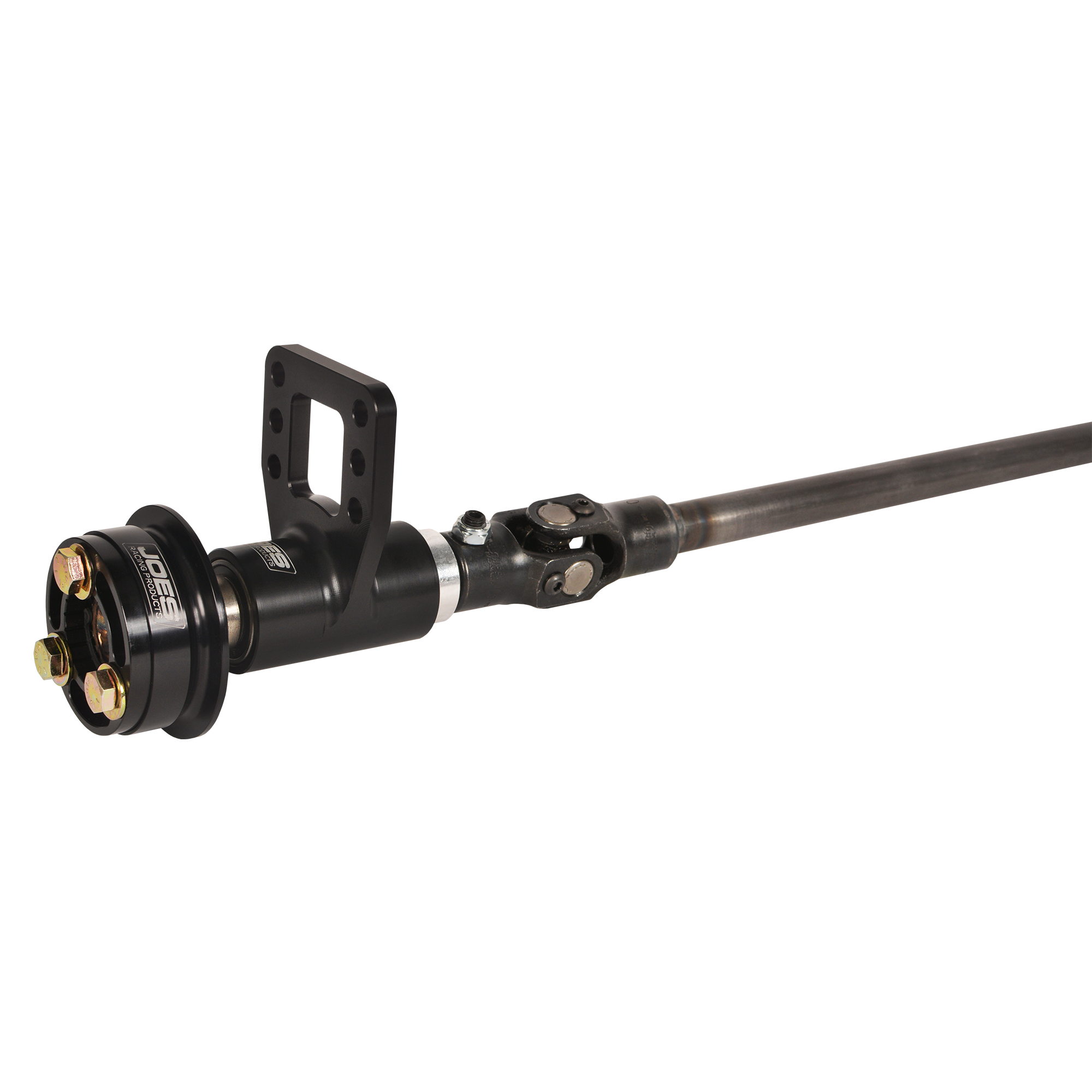

Our NEW Manual Steering Kit was designed to simplify building your manual steering system while also allowing you to find the optimal steering wheel position for your driver.

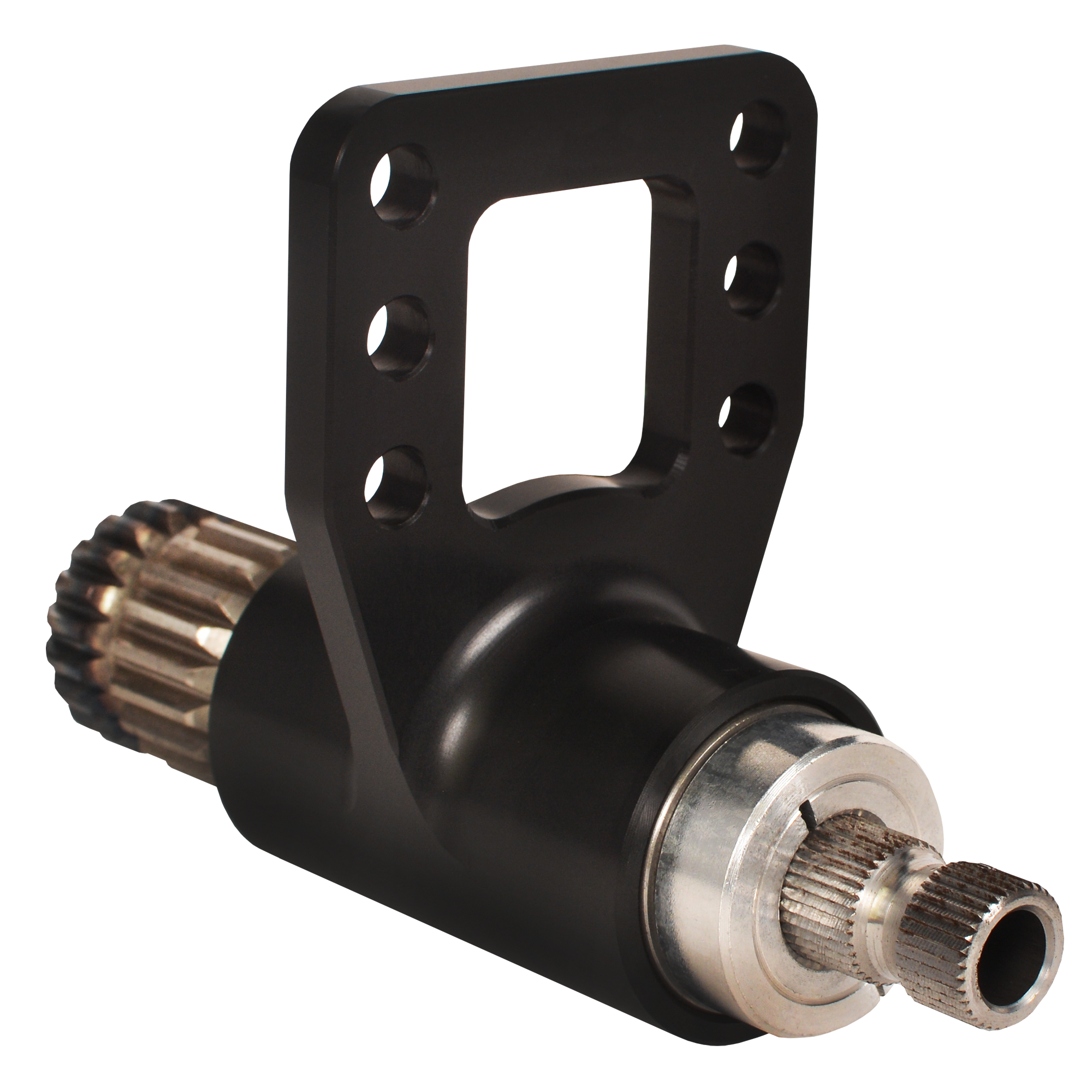

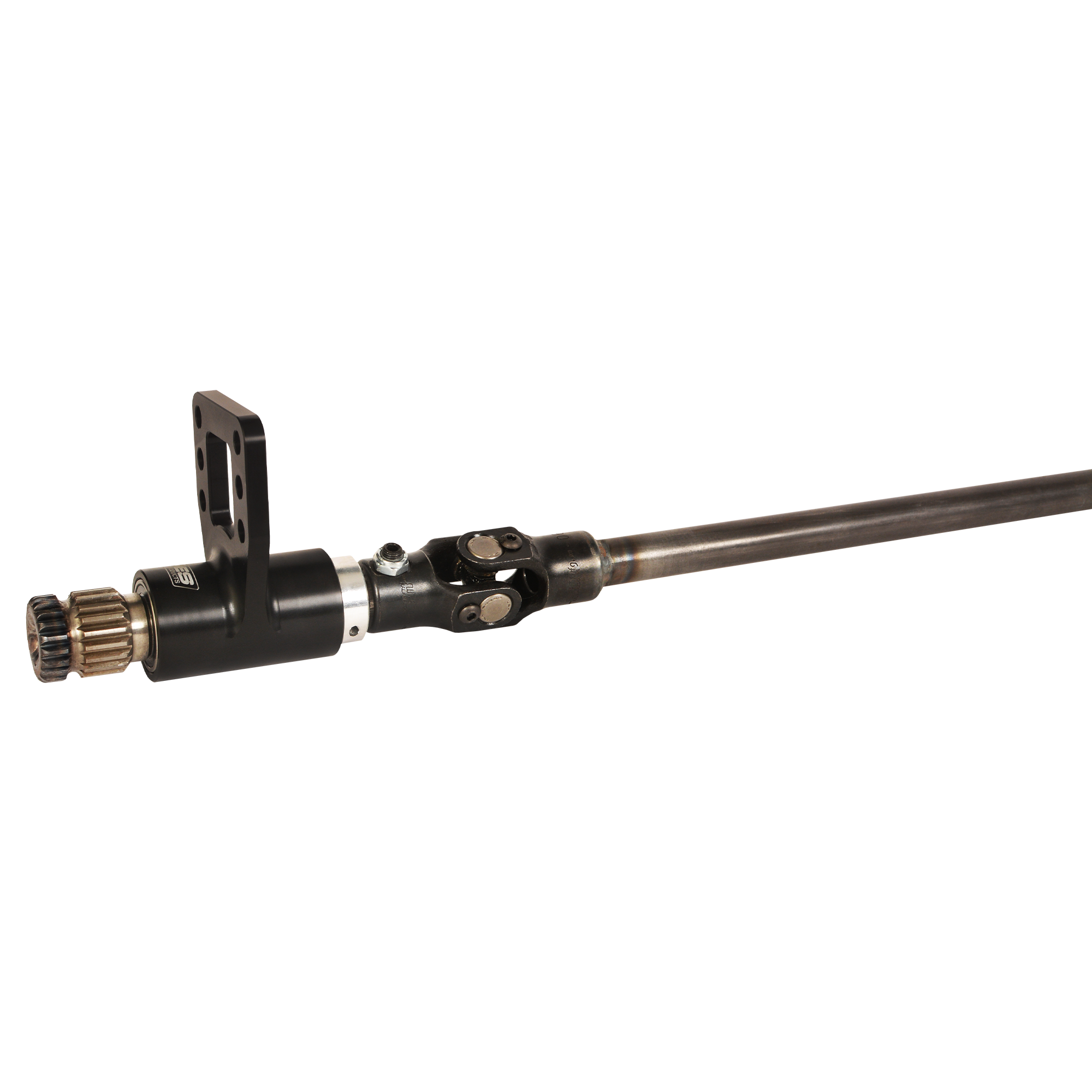

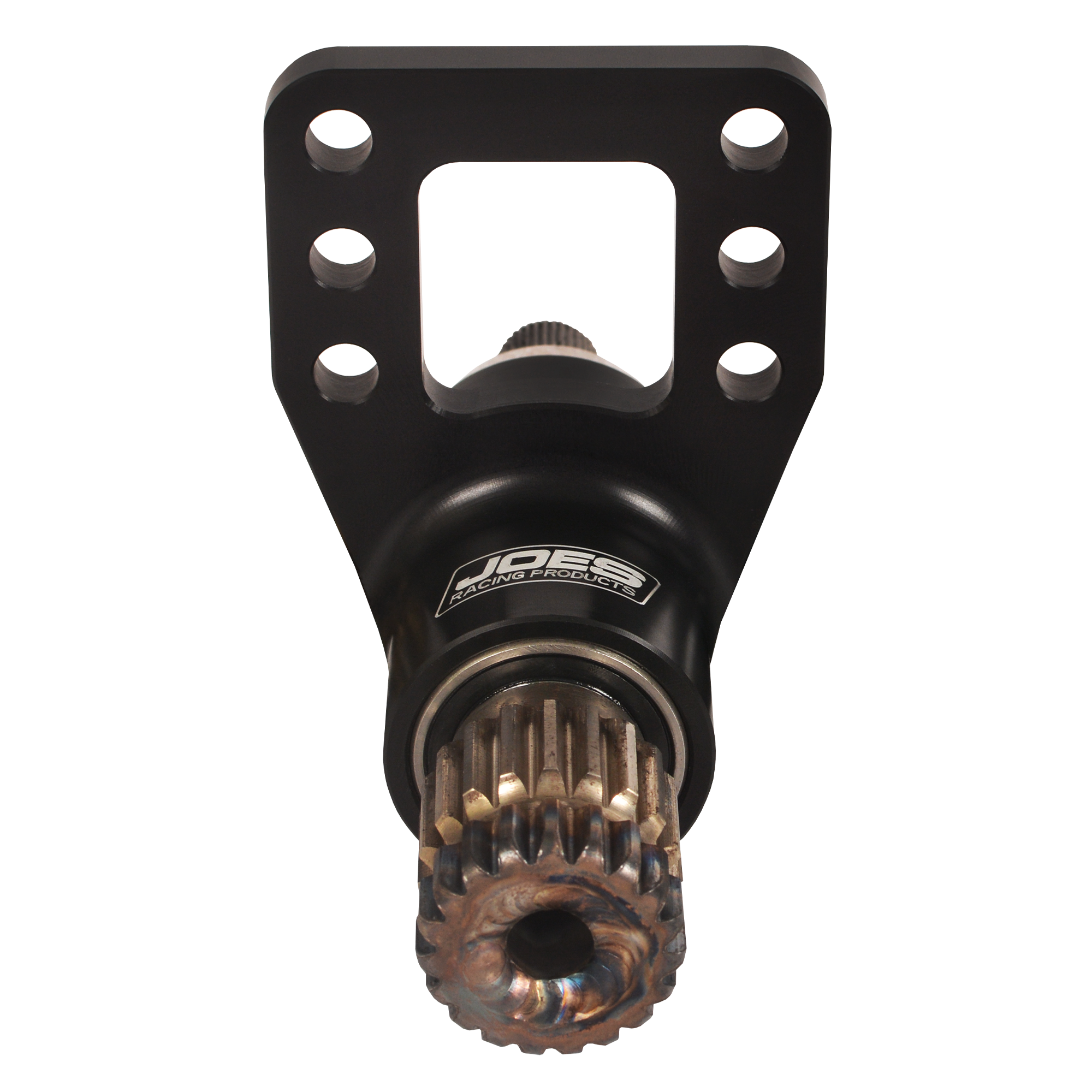

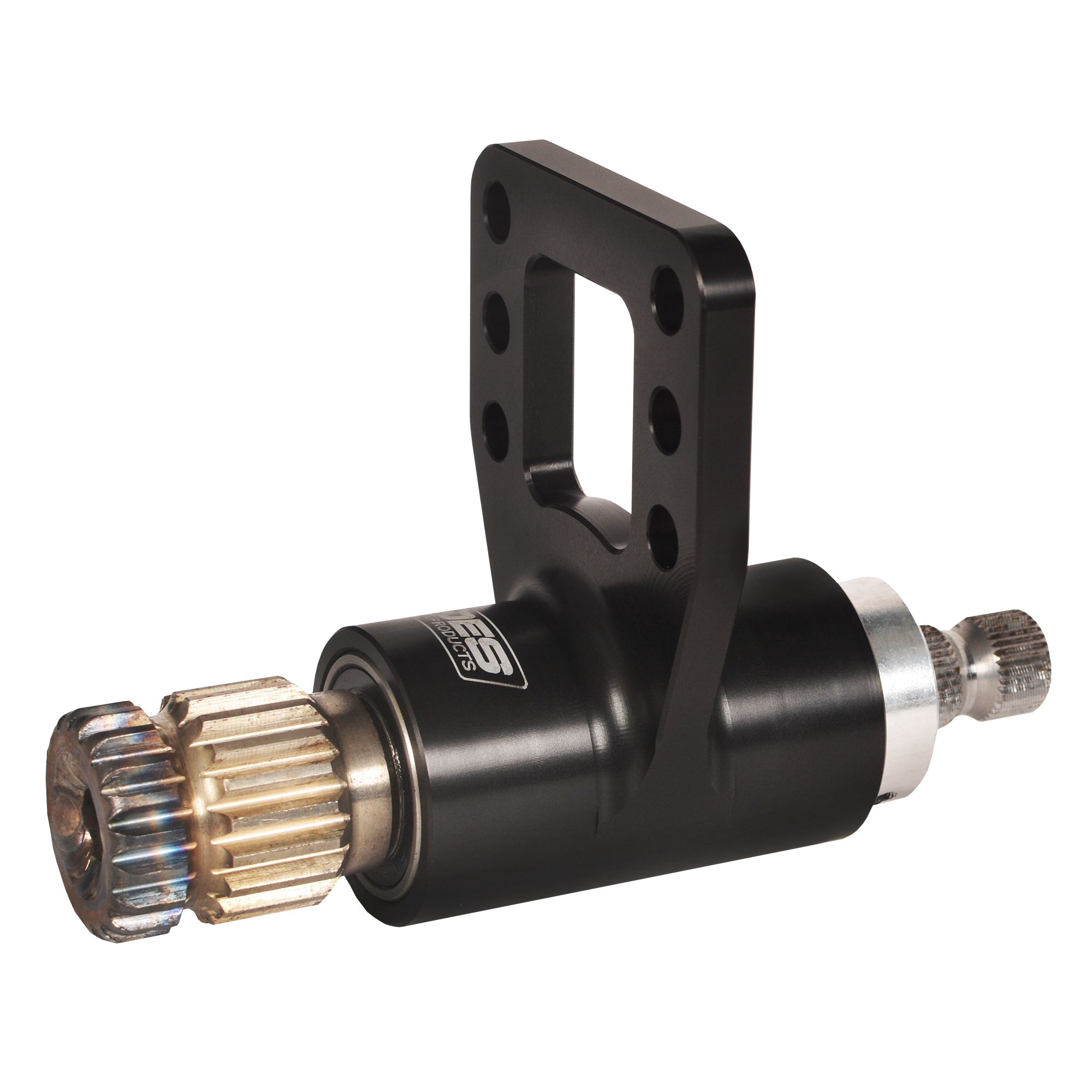

We’ve designed and developed an adjustable billet housing to bolt to your chassis that houses two ball bearings and a short stub steering shaft. This shaft has our Steering Wheel Disconnect hub already tig welded to it so all you have to do is attached your steering wheel to the included Steering Wheel Disconnect and the upper portion of your steering system is complete. Once that is installed, all you need to do is determine the length of your steering shaft, make one cut and weld on the included U-Joint following the included written instructions.

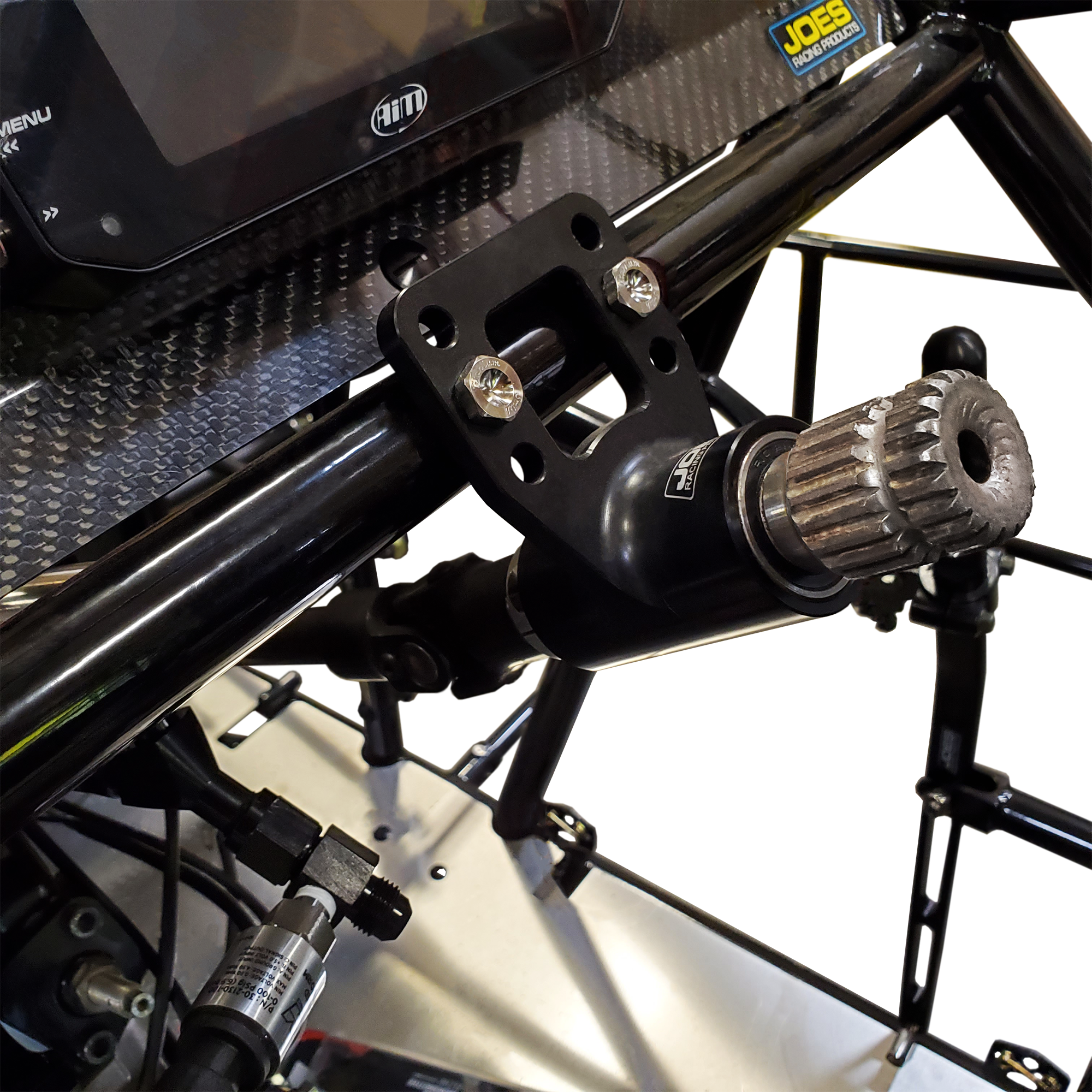

This kit is easily installed into your chassis with basic hand tools and light fabrication skills. You can connect this kit to your existing steering rack or combine this kit with our Micro Sprint Steering Rack (P/N 25637) to have the smoothest, strongest, and most serviceable Manual Steering system on the market today.

Can be purchased as Upper Support Bracket only (25638-1M) and Upper Steering Shaft Assembly only (25638-1U)

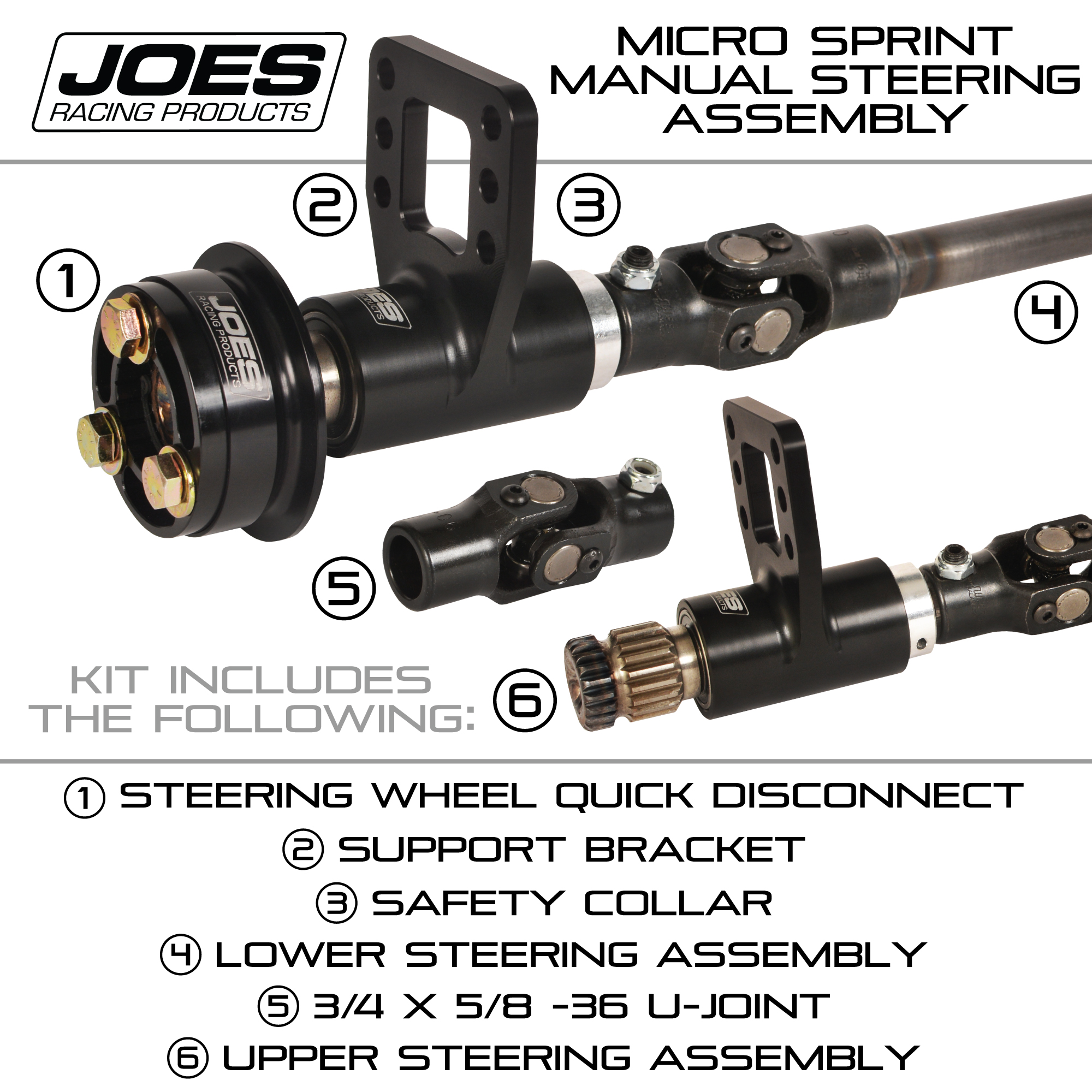

KIT INCLUDES:

  • Steering wheel disconnect
  • Billet Drop Bracket Assembly with Bearings
  • Splined stub shaft with tig welded Steering Wheel Disconnect hub
  • 2ea U-Joints 5/8″-36 Spline (one tig welded to steering shaft)
  • Steering Shaft (Sent with extra length to fit all major chassis designs. You must cut the tube to length per the included instructions)
Reviews (0)

Customer reviews

Reviews

There are no reviews yet.

Be the first to review “JOES Micro Sprint Manual Steering Assembly” Cancel reply

You must be logged in to post a comment.

Item Inquiry

Product Inquiry

Shipping & Delivery

Shipping Times

We ship same day if you place your order before 3:00PM PST on Monday through Friday (subject to part availability). If placed after 3:00PM it will be shipped the next business day. The map to the left shows shipping estimates for UPS Ground Shipping. Typically these shipping estimates are accurate but JOES does not guarantee these estimates, and if the estimate is not accurate it is up to the buyer to take the issue up with UPS.
